OVERVIEW


Elegant 4" LED profile system available modules with general or accent lights.

Proprietary industry leading linear LED platform with superior thermal management that yields reliable color consistency and output performance. The dedicated heat sink maintains the LED temperature at minimal level to ensure reliability in all conditions.


General lighting

Satin white PMMA diffuser with secondary optic provide wide distribution suitable for general lighting.


Accent lighting

Fully adjustable gimbals 1000 lumens

Modular continuous systems can be configured to obtain bespoke solutions by incorporating general lighting modules in combination with accent light.



FEATURES


Retrofit or new construction application

UP to 24 Ft continuous diffuser

LM80 Osram / Bridgelux leds

UL listed

5 year limited warranty

White or grey painted finish

MADE IN CANADA



Also available in T5 ►

SPECIFICATIONS

General lighting


Power  4.8 W / 7 W / 10 / 20 W  per foot

Output  359 Lm / 481 Lm / 635 Lm / 1200 lm per foot

Distributions  Greneral lighting

Color  3000 K - 3500 K - 4000 K

Cri  85

Controls  0-10V -Lutron - Dali

Lumen maintenance L70 100,00 hours





Accent lighting


Power   4.8 W to 20 W per foot

Output   350 to 1200 lumens per foot

Distributions  22º -29º - 60º

Color   3000 / 3500 / 4000 K

Cri   80 / 85

Lumen maintenance  L80 80,000 Hours




APPLICATION IMAGES




MODELS / DOWNLOADS



CANALE Recessed with Trim 4.8 to 20W/ft Spec ►   IES/CAD ►

CANALE Recessed with Trim
4.8 to 20W/ft
Spec ►   IES/CAD ►

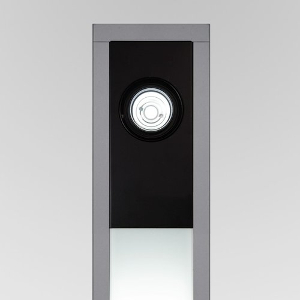

CANALE Accent with Trim 4.8 to 20W/ft Spec ►   IES/CAD ►

CANALE Accent with Trim
4.8 to 20W/ft
Spec ►   IES/CAD ►

CANALE Recessed Trimless 4.8 to 20W/ft Spec ►   IES/CAD ►

CANALE Recessed Trimless
4.8 to 20W/ft
Spec ►   IES/CAD ►

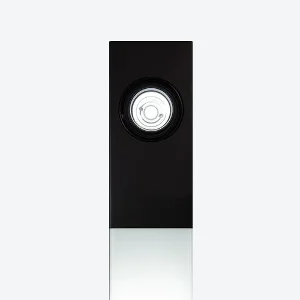

CANALE Accent Trimless 4.8 to 20W/ft Spec ►   IES/CAD ►

CANALE Accent Trimless
4.8 to 20W/ft
Spec ►   IES/CAD ►
