OVERVIEW

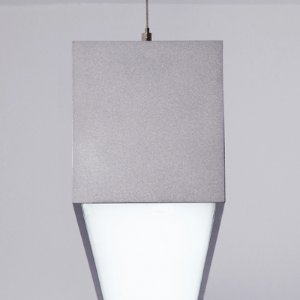

Elegant 4" LED profile system available modules with general or accent lights.

Proprietary industry leading linear LED platform with superior thermal management that yields reliable color consistency and output performance. The dedicated heat sink maintains the LED temperature at minimal level to ensure reliability in all conditions.


General lighting

Satin white PMMA diffuser with secondary optic provide wide distribution suitable for general lighting.


Accent lighting

Fully adjustable gimbals 1000 lumens

Modular continuous systems can be configured to obtain bespoke solutions by incorporating general lighting modules in combination with accent light.

FEATURES


Up to 20 ft continuous diffuser

LM80 Osram / Bridgelux LEDs

LM79 tested

UL listed

5 year limited warranty

White or Gray painted finish

MADE IN CANADA



Also available in T5 ►

SPECIFICATIONS

General lighting


Power   5 to 20 watts per foot

Output  350 to 1200 lumens per foot

Distributions  General lighting

Color  3000 / 3500 / 4000 K

Cri  85

Controls  0-10V / Lutron Hilume

Lumen maintenance L70 100,00 Hours







Accent lighting


Power   13.5 watts per lamp

Output  1000 lumens per lamp

Distributions  24º / 30º / 40º / 60º

Color  3000 / 3500 / 4000 K

Cri   80

Lumen maintenance  L80 80,000 Hours






APPLICATION IMAGES




MODELS / DOWNLOADS



CANALE Pendant Downlight 4.8 to 20 W/ft Spec ►   IES/CAD ►

CANALE Pendant Downlight
4.8 to 20 W/ft
Spec ►   IES/CAD ►



CANALE Pendant Up and Downlight 4.8 to 20 W/ft Spec ►   IES/CAD ►

CANALE Pendant Up and Downlight
4.8 to 20 W/ft
Spec ►   IES/CAD ►




CANALE Accent Pendant 4.8 to 20 W/ft Spec ►   IES/CAD ►

CANALE Accent Pendant
4.8 to 20 W/ft
Spec ►   IES/CAD ►






Also available as

8605 8606
