OVERVIEW

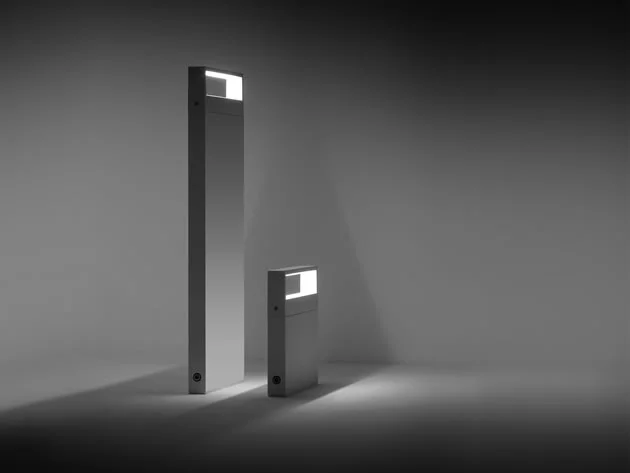

Collection of bollards for commercial and institutional applications.

Exceptional European build quality with  high corrosion resistant finish. Robust marine grade die-cast aluminum construction with stainless steel fasteners and factory sealed micro-prismatic glass diffuser.


Brochure ►



FEATURES


2 mounting heights

Operating temperature -30°C / +30°C

High efficiency Osram LEDs

High efficiency electronic driver > 50,000 H

IP54, UL Listed for wet location

White or Aluminum gray

5 year limited warranty

SPECIFICATIONS


Power  13.5 or 24 watts

Output  490 or 990 lumens

Distributions  Downward 360

Color  3000 / 4000 K

Cri  90

Control On demand

Lumen maintenance  L70  50 000 Hours


MODELS / Downloads



MINICOOL Bollard 8 5/8'' 13.5W  490 lm Spec ►   IES/CAD ►

MINICOOL Bollard 8 5/8''
13.5W  490 lm
Spec ►   IES/CAD ►

MINICOOL  Bollard 22 7/8'' 13.5W  490 lm Spec ►   IES/CAD ►

MINICOOL  Bollard 22 7/8''
13.5W  490 lm
Spec ►   IES/CAD ►

COOL Bollard 11 3/8'' 24W  990 lm Spec ►   IES/CAD ►

COOL Bollard 11 3/8''
24W  990 lm
Spec ►   IES/CAD ►

COOL Bollard 22 7/8'' 24W  990 lm Spec ►   IES/CAD ►

COOL Bollard 22 7/8''
24W  990 lm
Spec ►   IES/CAD ►


ALSO AVAILABLE AS

S.7236W S.7236N S.7241W S.7241N S.7245W S.7245N S.7246W S.7246N
