OVERVIEW

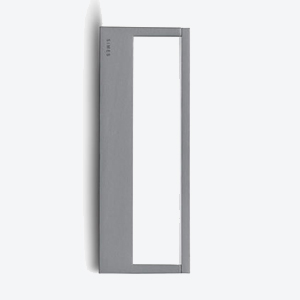

Collection of decorative wall mounted luminaires for exterior applications.
The indirect distribution reflect light from the wall surface enhancing the building color and texture.

Exceptional European build quality with high corrosion resistant finish.
Robust marine grade die-cast aluminum construction, with stainless steel fasteners, factory sealed glass diffuser.


Brochure ►



FEATURES


Available in 2 sizes

Low glare Indirect light distribution

High efficiency Osram LEDs

Integral high effiecncy electronic driver > 50,000 H

Operating temperature -30°C / +30°C

IP54, UL Listed for wet location

Grey, anthracite, white, black or bronze

5 year limited warranty





SPECIFICATIONS



Power 13.5 / 24 watts

Output  490 / 950 lumens

Distribution  Indirect

Color  3000 K

Cri   90

Control Consult  factory

Lumen maintenance : L70  50,000 Hours

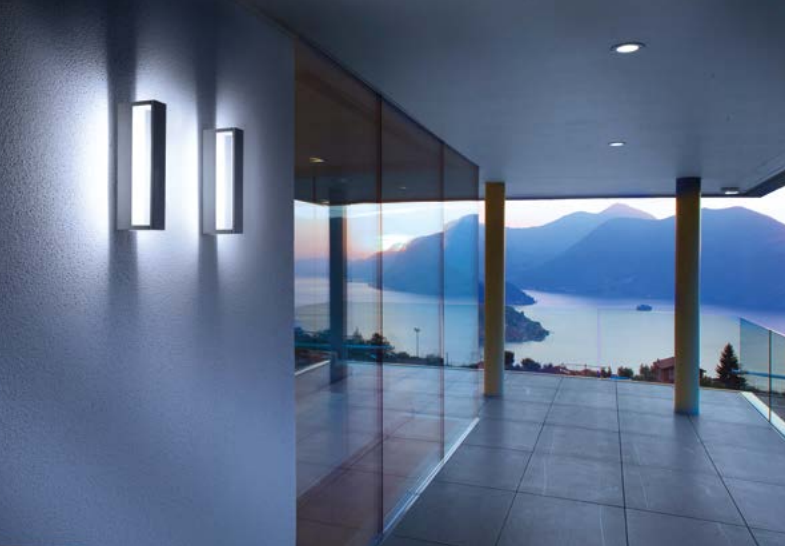

application images


MODELS / Downloads



MINICOOL  13.5W  490 lm Spec ►   IES/CAD ► Instructions ►

MINICOOL
13.5W  490 lm
Spec ►   IES/CAD ► Instructions ►

COOL 24W  950 lm Spec ►   IES/CAD ►

COOL
24W  950 lm
Spec ►   IES/CAD ►



ALSO AVAILABLE AS

S.7231W S.7270W
