OVERVIEW


Unique lighting system for wall recessed lighting in exterior applications.
The system consists of a series of concrete forming boxes designed to create a cavity in the wall during the concrete forming process.
The resulting void in the wall houses the LED light module, which is concealed from view.

Designed for low mounting heights with downward asymmetric light distribution. Low luminance with light source regressed inside the luminaire and shielded from all viewing angles.



Watch the video



FEATURES


Recessed application with back box

Square or rectangular

3 body sizes

High efficiency Osram LEDs

Operating temperature -30°C / +30°C

IP67, UL Listed for wet location

5 year limited warranty

SPECIFICATIONS


Power  7 / 9 / 14 watts

Output  250 / 285 / 540 lumens

Distributions  Downward Asymmetric

Color 3000 / 4000 K

Cri  80

Controls  Consult factory

Lumen maintenance L70 50.000 hours


MODELS / Downloads


GHOST Vertical 7W 250 lm Coming Soon

GHOST Vertical
7W 250 lm
Coming Soon

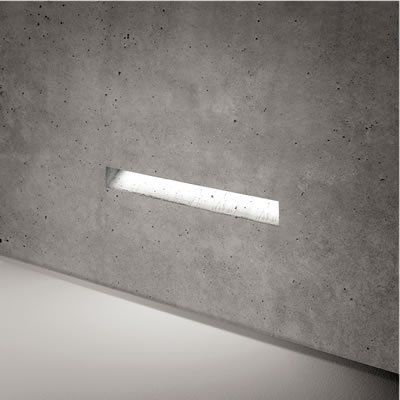

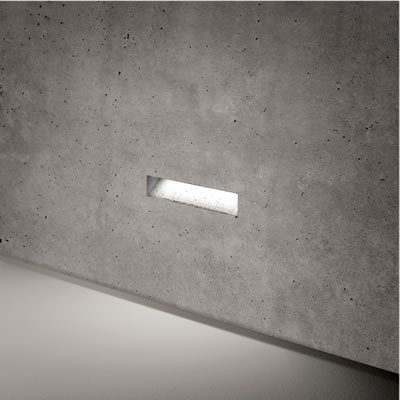

GHOST Horizontal 9W  285 lm Coming Soon

GHOST Horizontal
9W  285 lm
Coming Soon

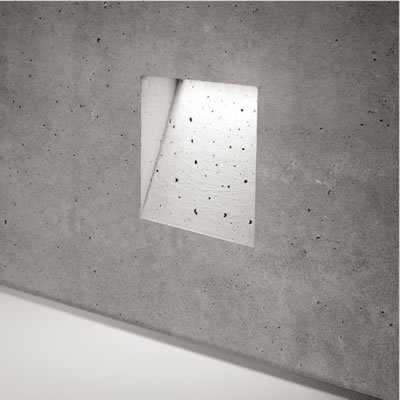

GHOST Square 14W  540 lm Coming Soon

GHOST Square
14W  540 lm
Coming Soon
