OVERVIEW

Collection of wall mounted luminaires for exterior applications.

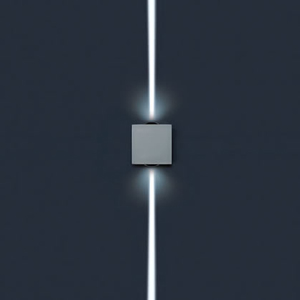

Lift has an innovative optical system that produces pleasing graphic effects.
By using a combination of wide or very narrow beams, this luminaire offers limitless possibility of lighting effects.
Choice of 7 standard configurations to suit most applications.

Exceptional European build quality with high corrosion resistant finish. Robust marine grade die-cast aluminum construction with stainless steel fasteners and factory sealed glass lenses.



FEATURES


7 effect lighting options

High efficiency Osram LEDs

Operating temperature -30°C / +30°C

Integral high efficiency electronic driver > 50,000 H

IP65, UL Listed for wet location

Aluminum grey

5 year limited warranty

SPECIFICATIONS


Power from 3.5 to 18 watts

Output   See spec sheet

Distributions  Very narrow or wide

Color  3000 / 4000 K

Cri 90

Controls Contact the factory

Lumen maintnence L70 50,000 hours


application Images


MODELS / DOWNLOADS



1 Window - Narrow Beam MINILIFT 3.5W  -  Spec ►   IES/CAD ► LIFT 18W            -  Spec ►   IES/CAD ►

1 Window - Narrow Beam

MINILIFT 3.5W  -  Spec ►   IES/CAD ►
LIFT 18W            -  Spec ►   IES/CAD ►

1 Window - Wide Beam MINILIFT 3.5W  -  Spec ►   IES/CAD ► LIFT 18W            -  Spec ►   IES/CAD ►

1 Window - Wide Beam

MINILIFT 3.5W  -  Spec ►   IES/CAD ►
LIFT 18W            -  Spec ►   IES/CAD ►

2 Windows - Narrow Beams MINILIFT 6.5W  -  Spec ►   IES/CAD ► LIFT 18W            -  Spec ►   IES/CAD ►

2 Windows - Narrow Beams

MINILIFT 6.5W  -  Spec ►   IES/CAD ►
LIFT 18W            -  Spec ►   IES/CAD ►

2 Windows - Wide Beams MINILIFT 6.5W  -  Spec ►   IES/CAD ► LIFT 18W            -  Spec ►   IES/CAD ►

2 Windows - Wide Beams

MINILIFT 6.5W  -  Spec ►   IES/CAD ►
LIFT 18W            -  Spec ►   IES/CAD ►

2 Windows - 1 Wide 1 Narrow MINILIFT 6.5W  -  Spec ►   IES/CAD ► LIFT 18W            -  Spec ►   IES/CAD ►

2 Windows - 1 Wide 1 Narrow

MINILIFT 6.5W  -  Spec ►   IES/CAD ►
LIFT 18W            -  Spec ►   IES/CAD ►

4 Windows - 4 Narrow Beams MINILIFT 11.5W  -  Spec ►   IES/CAD ► LIFT 18W            -  Spec ►   IES/CAD ►

4 Windows - 4 Narrow Beams

MINILIFT 11.5W  -  Spec ►   IES/CAD ►
LIFT 18W            -  Spec ►   IES/CAD ►

4 Windows - 4 Wide Beams MINILIFT 11.5W  -  Spec ►   IES/CAD ► LIFT 18W            -  Spec ►   IES/CAD ►

4 Windows - 4 Wide Beams

MINILIFT 11.5W  -  Spec ►   IES/CAD ►
LIFT 18W            -  Spec ►   IES/CAD ►

Rectangular MINILIFT 13 or 26W  -  Spec ► IES/CAD ► LIFT 26 or 46W -  Spec ►   IES/CAD ►

Rectangular

MINILIFT 13 or 26W  -  Spec ► IES/CAD ►
LIFT 26 or 46W -  Spec ►   IES/CAD ►

S.5067N S.5067W S.5077W S.5077N S.5027W S.5027N S.5037W S.5037N S.5047W S.5047N S.5087W S.5087N S.5097W S.5097N S.5070W - S.5075W S.5026 S.5033 S.5040 S.5080 S.5090 S.5054 S.5064 S.5049 S.5066
