OVERVIEW


Multi-lamp suspended frame system for architectural lighting.
Modem Large is available with 2 lumen packages 22W and 28.5W delivering up to 3100 lumens. These high lumen packages are most suited for large scale retail and architectural lighting applications where scalable lighting solutions are required.
Producing up to 3100 lumens the multiple series is among the best performing luminaires in the industry.
112 lm /W delivered (3000 K)

Industry leading thermal management platform yields reliable color consistency and output performance for the life cycle of the product.

Modular continuous systems can be configured to obtain bespoke solutions by incorporating the standard modules, black panels or custom modules.



FEATURES


45° adjustable on all axis

Plug and play replaceable LED engine

Field interchangeable optics

LM80 tested Bridgelux LED

UL listed

5 year limited warranty

MADE IN CANADA

SPECIFICATIONS


Power  22 or 28.5W (per lamp)

Output  2400 or 3100 lm (per lamp)

Distribution  Spot / Narrow Flood / Flood

Color  2700 / 3000 / 3500 / 4000 K

Cri  80 / 90 / 97

Controls  0-10V  - ( Lutron -Triac on demand )

Lumen maintenance  90 % of light output > 132,000 Hours




APPLICATION IMAGES


MODELS / DOWNLOADS

  MODEM  Large Horizontal Square 66W or 86W  Spec  ►       Ies/Spec    ►

MODEM Large Horizontal Square
66W or 86W
Spec     Ies/Spec

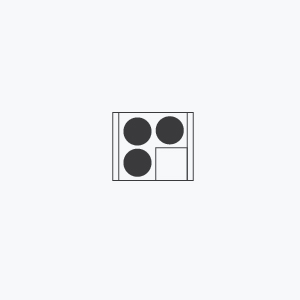

  MODEM  Large Horizontal Square 88W or 114W  Spec  ►       Ies/Spec    ►

MODEM Large Horizontal Square
88W or 114W
Spec     Ies/Spec

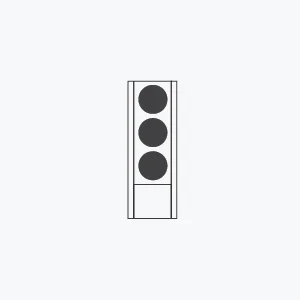

  MODEM  Large Horizontal 66W or 86W  Spec  ►       Ies/Spec    ►

MODEM Large Horizontal
66W or 86W
Spec     Ies/Spec

  MODEM  Large Horizontal 132W or 171W  Spec  ►       Ies/Spec    ►

MODEM Large Horizontal
132W or 171W
Spec     Ies/Spec


ACCESSORIES

A complete range of accessories is available for applications where shielding the light aperture is required. Colourless optical glass lenses allow to further customize the light distribution.



also available as

3906 3923 3903 3924
