OVERVIEW


Ceiling or wall mounted multi-lamp systems.
Industry leading thermal management platform yields reliable color consistency and output performance for the life cycle of the product.
Modular continuous systems can be configured to obtain bespoke solutions by incorporating the standard modules, black panels or custom modules.

Installs into a standard 4" J box

FEATURES


45° adjustable on all axis

Plug and play replaceable engine

Field interchangable optics

LM80 tested Led by Bridgelux

Finishes:  metallic gray

UL listed

5-year limited warranty

MADE IN CANADA

SPECIFICATIONS


Power   42 / 84 Watts

Output   1000 lm / module

Distributions    22º -29º - 60º

Color   3000 / 3500 / 4000 K

Cri   80 / 90

Controls   Triac-Elv  or 0-10V

Lumen maintenance  L80 50,000 Hours


APPLICATION IMAGES


MODELS

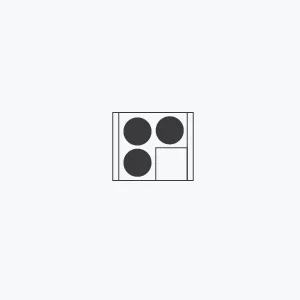

MODEM Small Square 42W Spec ►   Ies/Cad►

MODEM Small Square
42W
Spec    Ies/Cad

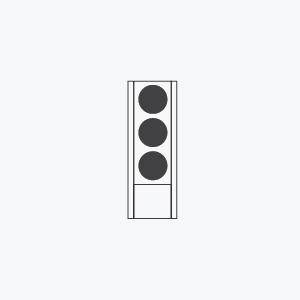

MODEM Small Rectangular 3 Heads 42W Spec ►   Ies/Cad►

MODEM Small Rectangular 3 Heads
42W
Spec    Ies/Cad

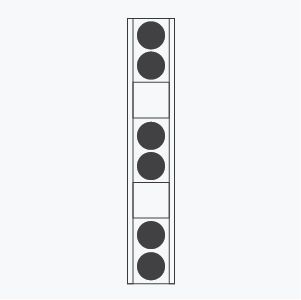

MODEM Small Rectangular 6 Heads 84W Spec ►   Ies/Cad►

MODEM Small Rectangular 6 Heads
84W
Spec    Ies/Cad



ACCESSORIES

A complete range of accessories is available for applications where shielding the light aperture is required. Colourless optical glass lenses allow to further customize the light distribution.



3803-W 3806-W 3813-W
