OVERVIEW


Collection of multi-lamps directional LED downlight for commercial and institutional applications.
Multiple Large is available with 2 lumen packages 22.5W and 28.5W delivering up to 3100 lumens. These high lumen packages are most suited for large scale retail and architectural lighting applications where scalable lighting solutions are required.
Producing up to 3100 lumens the multiple series is among the best performing luminaires in the industry.
112 lm / W delivered (3000 K)

Industry leading LED platform yields reliable color consistency and output performance during the life of the product.



Also available in Halogen and Metal Halide ►

FEATURES


Retrofit or new construction

45° adjustable on all axis

Plug and play replaceable LED engine

Field interchangeable optics

LM80 tested Bridgelux LED

Energy Star

UL listed

White, Black or Gray

5 year limited warranty

MADE IN CANADA

SPECIFICATIONS


Power  22 / 28.5 watts (per lamp)

Output  2400 / 3100 lumens (per lamp)

Distributions  22º / 26º / 37º

Color  2700 / 3000 / 3500 / 4000 K

Cri  80 / 90 / 97

Controls  0-10V  - ( Lutron - Triac on demand )

Lumen maintenance  90 % of light output > 132,000 Hours


APPLICATION IMAGES


MODELS / DOWNLOADS

MULTIPLE LARGE Single Round Spec ►     Ies/Cad ►    Instructions ►

MULTIPLE LARGE Single Round
Spec ►     Ies/Cad ►    Instructions ►

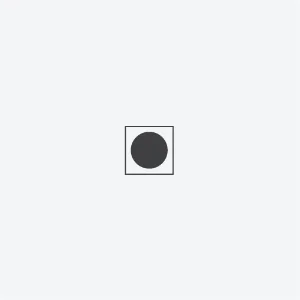

MULTIPLE LARGE Single Square Spec ►    Ies/Cad ►    Instructions ►

MULTIPLE LARGE Single Square
Spec ►    Ies/Cad ►    Instructions ►

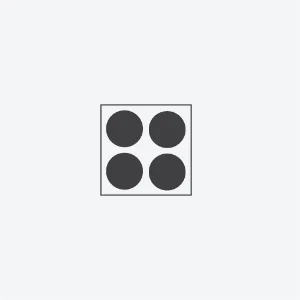

MULTIPLE LARGE Four Square Spec ►    Ies/Cad ►    Instructions ►

MULTIPLE LARGE Four Square
Spec ►    Ies/Cad ►    Instructions ►


MULTIPLE LARGE Double Spec ►    Ies/Cad ►    Instructions ►

MULTIPLE LARGE Double
Spec ►    Ies/Cad ►    Instructions ►

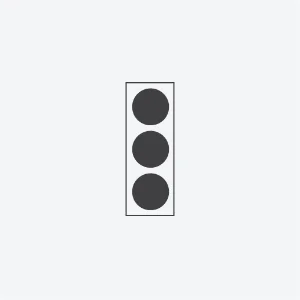

MULTIPLE LARGE Triple Spec ►    Ies/Cad ►    Instructions ►

MULTIPLE LARGE Triple
Spec ►    Ies/Cad ►    Instructions ►

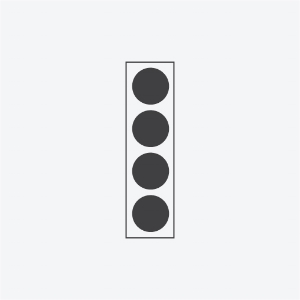

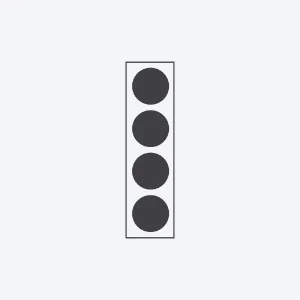

MULTIPLE LARGE Four Spec ►   Ies/Cad ►   Instructions ►

MULTIPLE LARGE Four
Spec ►   Ies/Cad ►   Instructions ►

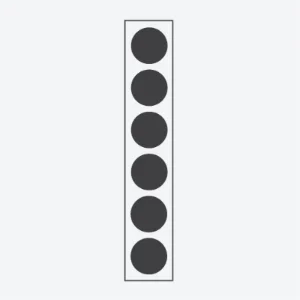

MULTIPLE LARGE Six Spec ►   Ies/Cad ►    Instructions ►

MULTIPLE LARGE Six
Spec ►   Ies/Cad ►    Instructions ►


ACCESSORIES

A complete range of accessories is available for applications where shielding the light aperture is required. Colorless optical glass lenses allow to further customize the light distribution.



8208 8218 8228 8238 8248 8248L 8268
