OVERVIEW


Collection of multi-lamps directional LED downlights for commercial and institutional applications.
Multiple Small is available up to 1300 lumens and only 14 W replaces halogen and low wattage Metal Halide luminaires. Multiple Small is most suited for small scale commercial and residential lighting applications where scalable lighting solutions are required. Highly reliable thermal design ensures long lasting performance and color consistency.

Supplied with Triac or ELV dimmable driver compatible with most incandescent dimmers (0-10V).



Also available in Halogen MR16

FEATURES


Retrofit or new construction

30° adjustable on all axis

Plug and play replaceable engine

Field interchangeable optics

LM80 tested LED by Bridgelux

White, Metallic grey or Black

UL listed

5 year limited warranty

MADE IN CANADA

SPECIFICATIONS


Power   14 watts per lamp

Output   Up to 1300 lumens per lamp

Distributions   20º / 30º / 40º / 60º

Color   2700 / 3000 / 3500 / 4000 K

Cri   80 / 90 / 97

Controls   Triac-ELV / 0-10V

Lumen maintenance  L90 100,000 Hours


APPLICATION IMAGES




MODELS / DOWNLOADS



MULTIPLE SMALL Single Round 14 W  Up to 1300 lm per lamp Spec ►   Ies/Cad ►   Instructions ►

MULTIPLE SMALL Single Round
14 W  Up to 1300 lm per lamp
Spec ►   Ies/Cad ►   Instructions ►

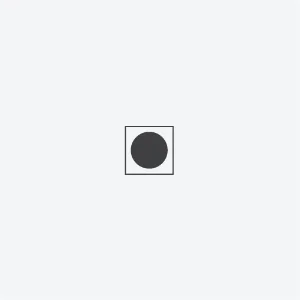

MULTIPLE SMALL Single Square 14 W  Up to 1300 lm per lamp Spec ►   Ies/Cad ►   Instructions ►

MULTIPLE SMALL Single Square
14 W  Up to 1300 lm per lamp
Spec ►   Ies/Cad ►   Instructions ►

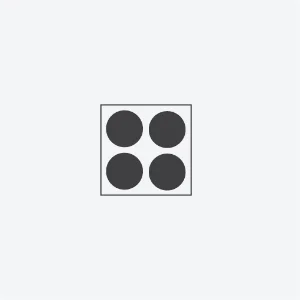

MULTIPLE SMALL Four Square 4 x 14 W  Up to 1300 lm per lamp Spec ►   Ies/Cad ►    Instructions ►

MULTIPLE SMALL Four Square
4 x 14 W  Up to 1300 lm per lamp
Spec ►   Ies/Cad ►    Instructions ►

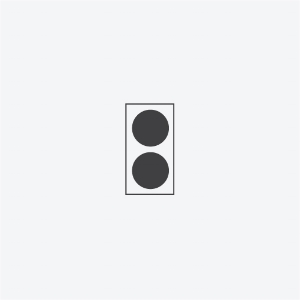

MULTIPLE SMALL Double 2 x 14 W  Up to 1300 lm per lamp Spec ►   Ies/Cad ►  Instructions ►

MULTIPLE SMALL Double
2 x 14 W  Up to 1300 lm per lamp
Spec ►   Ies/Cad ►  Instructions ►

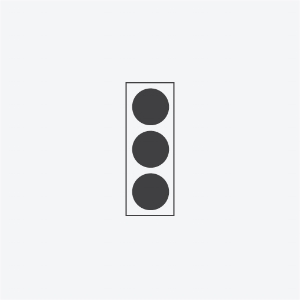

MULTIPLE SMALL Triple 3 x 14 W  Up to 1300 lm per lamp Spec ►   Ies/Cad ►  Instructions ►

MULTIPLE SMALL Triple
3 x 14 W  Up to 1300 lm per lamp
Spec    Ies/Cad ►  Instructions ►

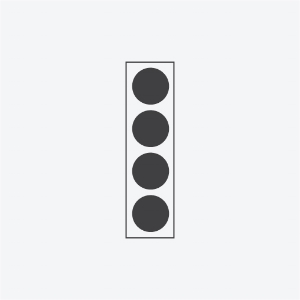

MULTIPLE SMALL Four 4 x 14 W  Up to 1300 lm per lamp Spec ►   Ies/Cad ►  Instructions ►

MULTIPLE SMALL Four
4 x 14 W  Up to 1300 lm per lamp
Spec ►   Ies/Cad ►  Instructions ►

MULTIPLE SMALL Six 6 x 14 W  Up to 1300 lm per lamp Spec ►   Ies/Cad ►  Instructions ►

MULTIPLE SMALL Six
6 x 14 W  Up to 1300 lm per lamp
Spec ►   Ies/Cad ►  Instructions ►


ACCESSORIES

A complete range of accessories is available for applications where shielding the light aperture is required. Colourless optical glass lenses allow to further customize the light distribution.



8108 8118 8128 8138 8148L 8148 8168
