OVERVIEW

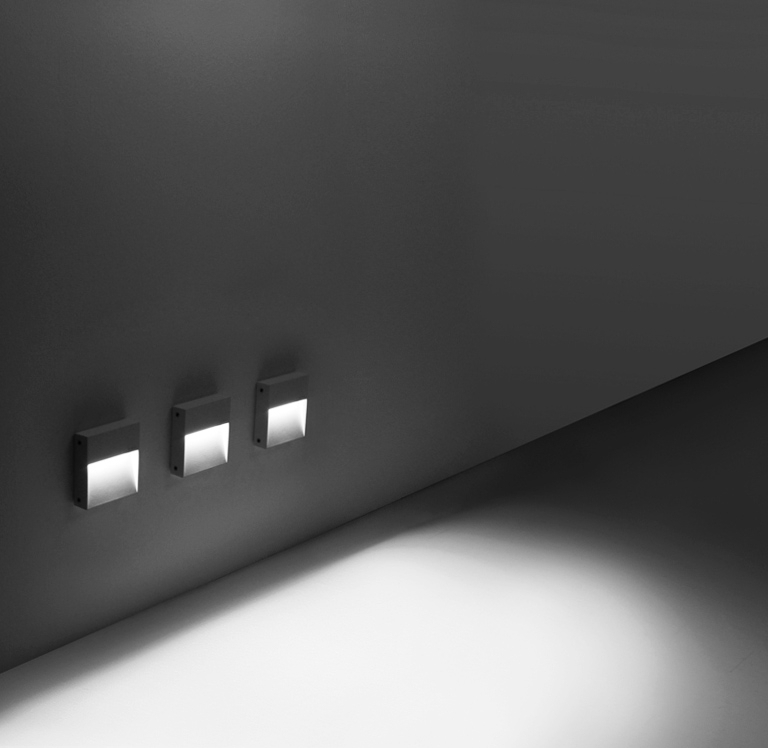

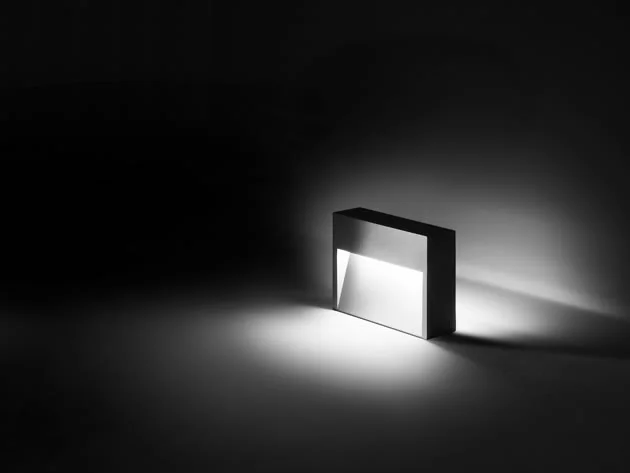

Collection of wall luminaires for exterior applications.
Designed for low mounting heights with downward asymmetric light distribution . Low luminance with light source regressed inside the luminaire and shielded from all viewing angles.
Available in round square or rectangular design, to match the application scale and design.
Surface mounted application in most materials with direct feed to the fixture or mounted on standard 4"J box.
Recessed application with metal back box to be installed during concrete forming or to be fastened to the wall structure before the building cladding .

Exceptional European build quality with high corrosion resistant finish. Robust marine grade die-cast aluminum construction with stainless steel fasteners and factory sealed micro-prismatic glass diffuser.

* Some mounting options and or dimming protocols require remote  led driver


Brochure ►

FEATURES


Recessed or surface mounted

Round, Square or rectangular

Shallow depth only 1.25"

High efficiency Osram Leds

Operating temperature -30°C/+30°C

IP65, UL Listed for wet location

Grey,  Anthracite, White , Black or Bronze

5 years limited warranty

SPECIFICATIONS


Power  6 / 12.5 / 24 Watts

Output  160 to 900 Lumens

Distribution  Downward asymmetric

Color  3000 / 4000K

Cri   90

Controls  see spec sheet

Lumen maintenance : L70  50,000 Hours

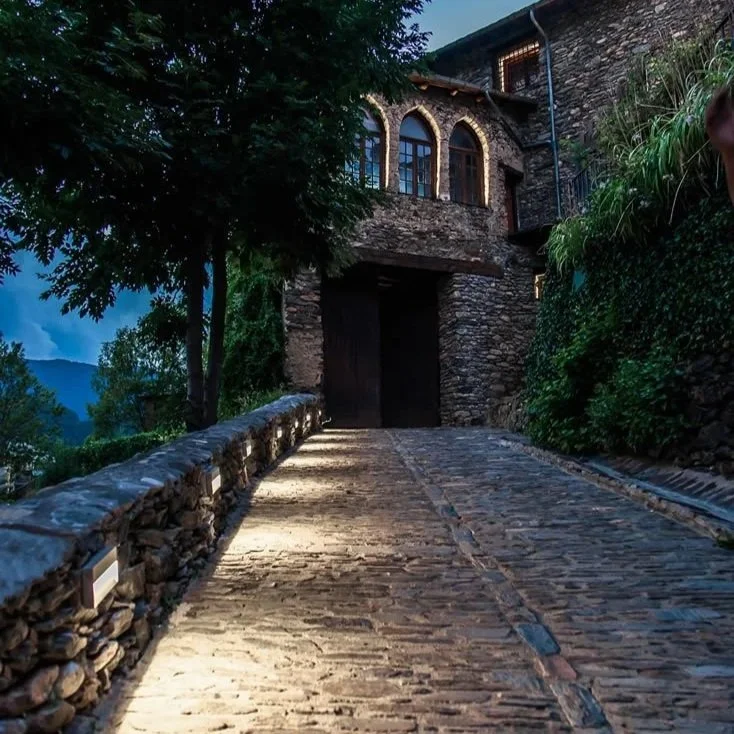

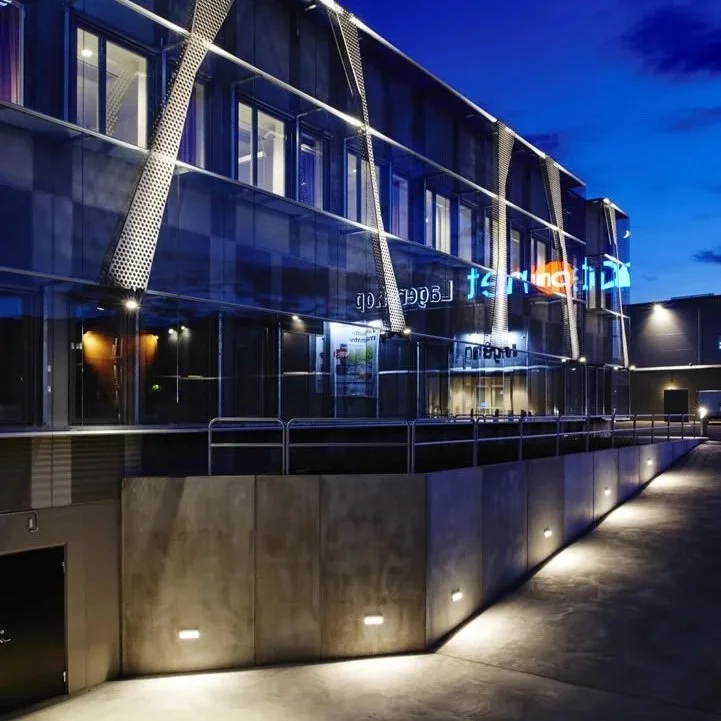

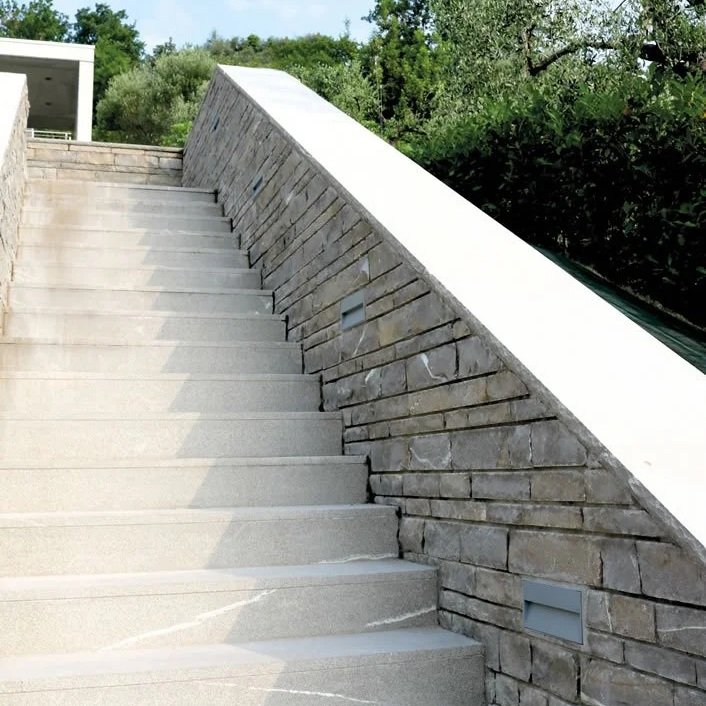

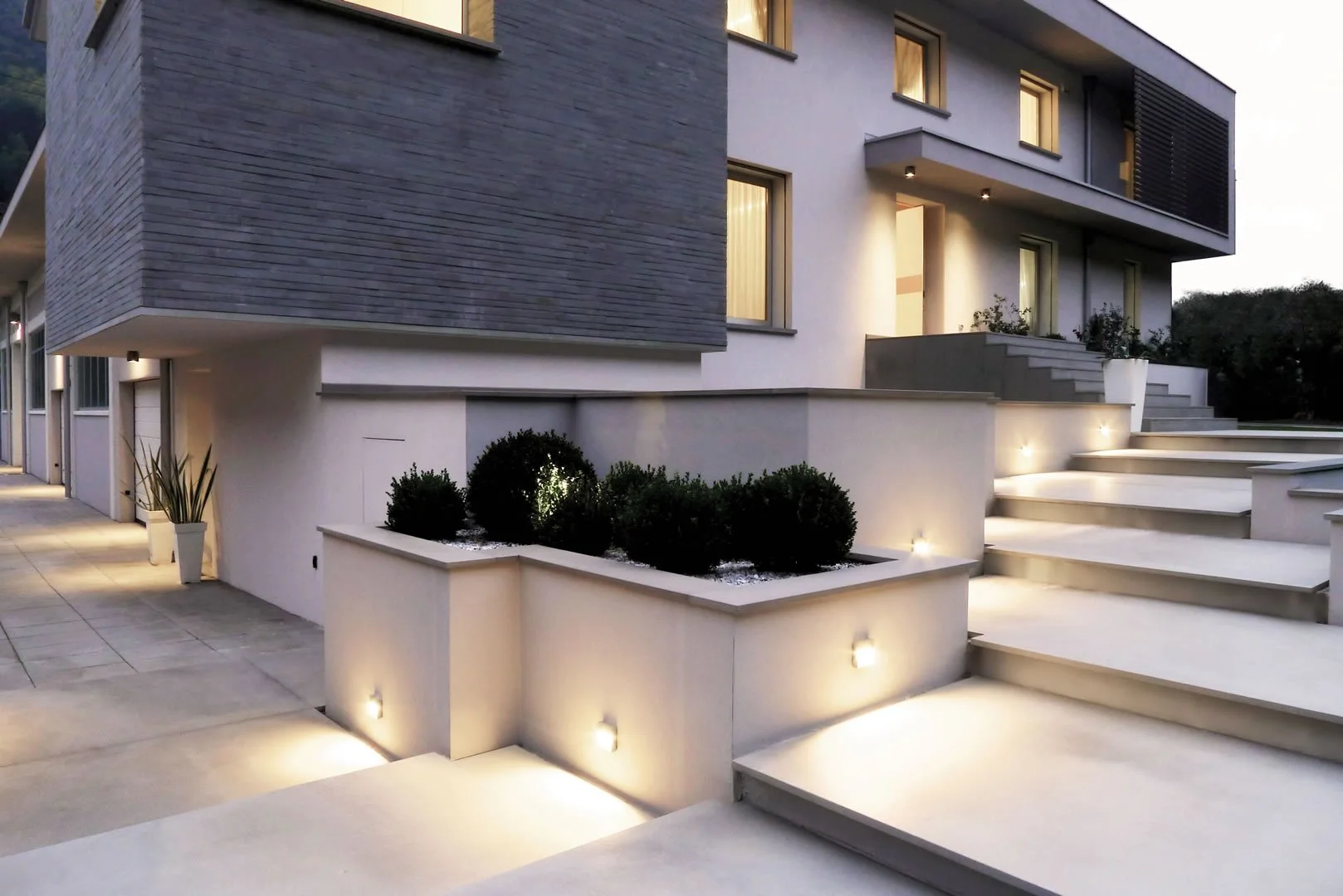

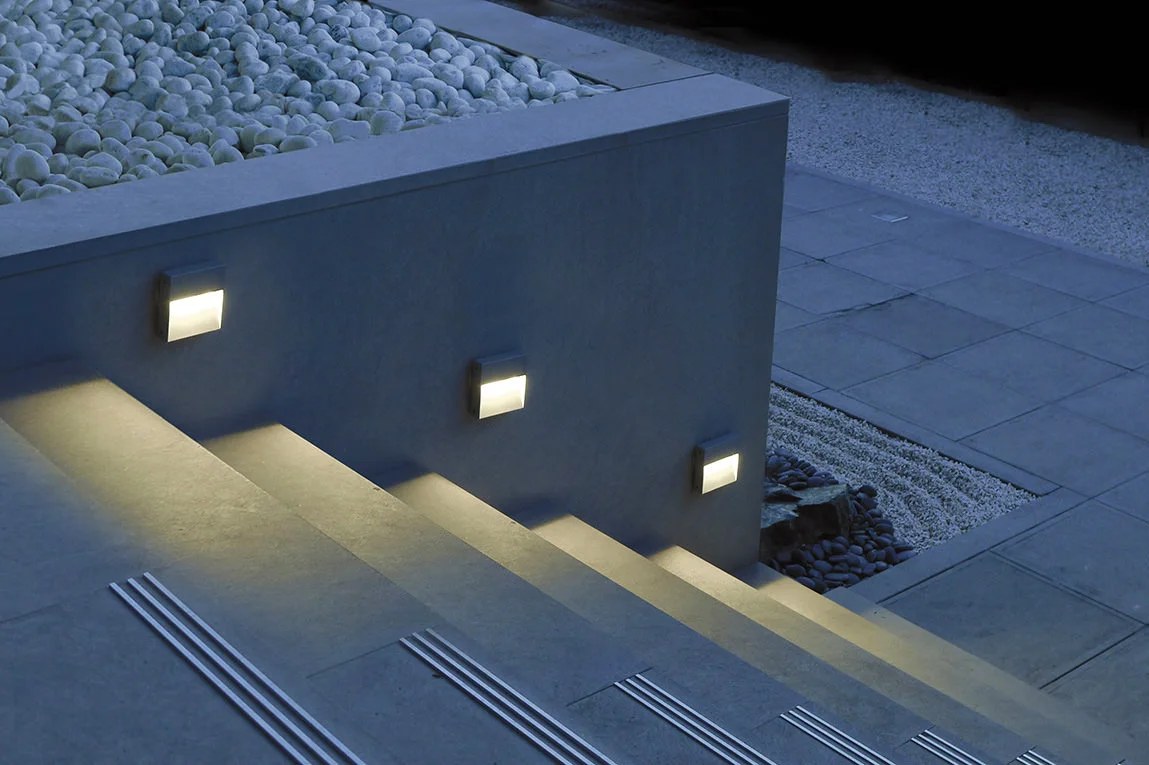

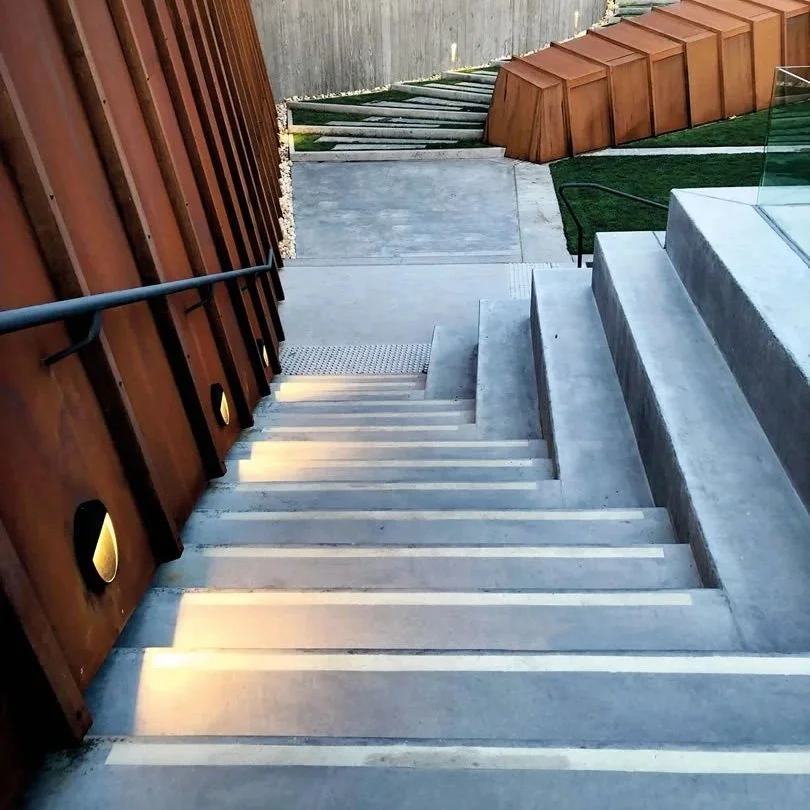

APPLICATION IMAGES


MODELS / Downloads

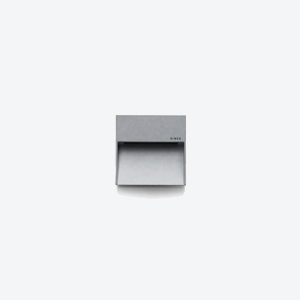

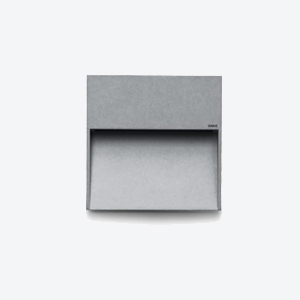

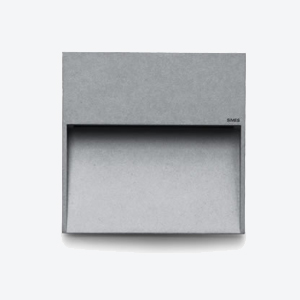

SQUARE

MINISKILL 6W Spec ►   IES/CAD ►   Instructions ►

MINISKILL
6W
Spec ►   IES/CAD ►   Instructions ►

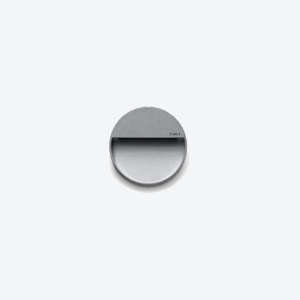

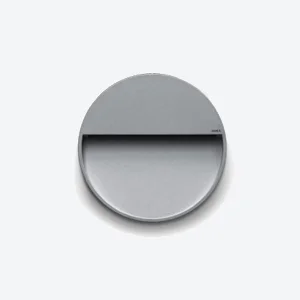

ROUND

SKILL Medium 12.5W Spec ►  IES/CAD ►  Instructions ►

SKILL Medium
12.5W
Spec ►  IES/CAD ►  Instructions

SKILL Large 23.8W Spec ►   IES/CAD ►

SKILL Large
23.8W
Spec ►   IES/CAD ►


MINISKILL  6W Spec ►   IES/CAD ►   Instructions ►

MINISKILL
6W
Spec ►   IES/CAD ►   Instructions

RECTANGULAR

SKILL Medium 12.5W Spec ►   IES/CAD ►   Instructions ►

SKILL Medium
12.5W
Spec ►   IES/CAD ►   Instructions


MINISKILL 6W Spec ►   IES/CAD ►

MINISKILL
6W
Spec ►   IES/CAD ►

SKILL Medium 13.5W Spec ►   IES/CAD ►   Instructions ►

SKILL Medium
13.5W
Spec ►   IES/CAD ►   Instructions



ALSO AVAILABLE AS

S.6250W S.6250N S.6260W S.6260N S.6255W S.6270W S.6270N S.6280W S.6280N S.6240W S.6240N S.6230W
