OVERVIEW

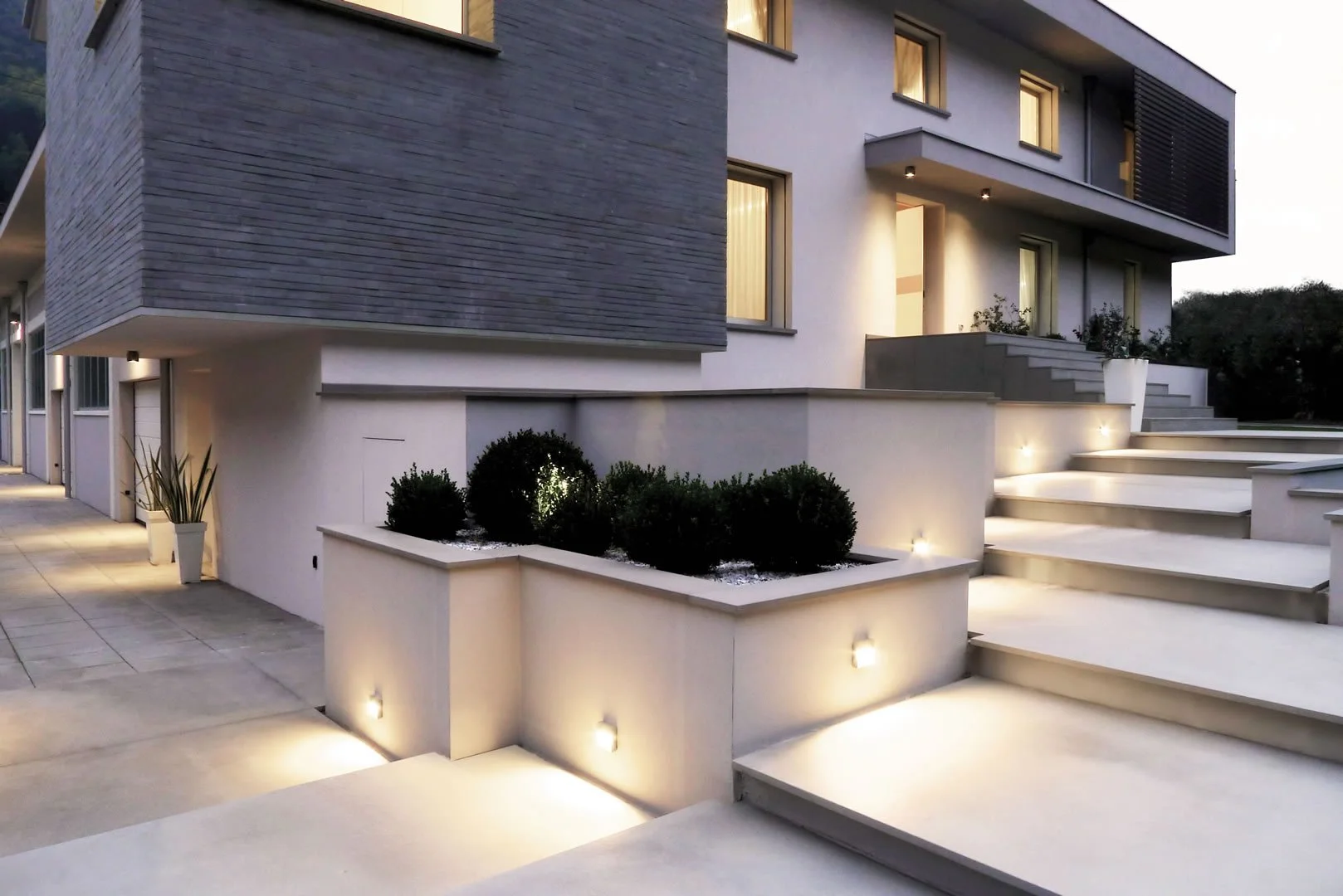

Collection of wall luminaires for exterior applications with Teak wood inlays.
Designed for low mounting heights with downward asymmetric light distribution. Low luminance with light source regressed inside the luminaire and  shielded from all viewing angles. Available in square or rectangular design, to match the application scale and design.
Surface mounted application in most material with direct feed to the fixture or with mounted on standard 4"J box.
Recessed application with metal back box to be installed during the forming of the concrete wall or to be fasted to the wall structure before the building cladding.
Exceptional European build quality with  high corrosion resistant finish. Robust marine grade die-cast aluminum construction with ,stainless steel fasteners and factory sealed glass diffuser.

*Some mounting options and  dimming protocols requires remote led driver


Brochure ►

FEATURES


Recessed or surface mounted

Operating temperature -30°C / +30°C

High efficiency Osram LEDs

IP65, UL Listed for wet location

White or bronze finish

5 year limited warranty

SPECIFICATIONS


Power from 6 to 13.5 watts

Output  from 152 to 405 lumens

Distributions  Downward asymmetric

Color  3000 / 4000 K

Cri  90

Control See spec sheet

Lumen maintenance : L70  100 000 Hours




MODELS / Downloads

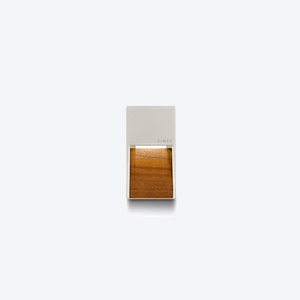

MINISKILL Vertical Wood 6W  152 lm Spec ►     Instructions ►

MINISKILL Vertical Wood
6W  152 lm
Spec ►     Instructions ►

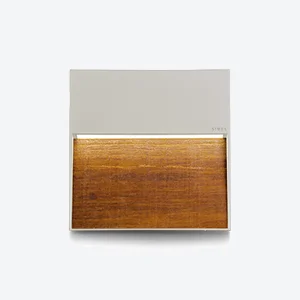

SKILL Square Wood 12.5W 400 lm Spec ►     Instructions ►

SKILL Square Wood
12.5W 400 lm
Spec ►     Instructions ►

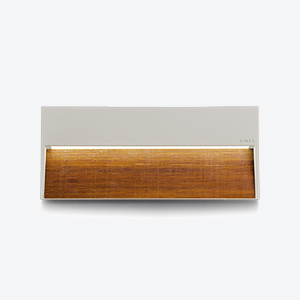

SKILL Rectangular Wood 13.5W  380 lm Spec ►     Instructions ►

SKILL Rectangular Wood
13.5W  380 lm
Spec ►     Instructions ►



ALSO AVAILABLE AS

S.L9230W S.L9260 S.L9240
