OVERVIEW


Collection of in-grade  luminaires for exterior applications.
4 floor grazing distributions to illuminate pathways , sidewalks, greenery or simply to create a pleasing lighting graphic effect.
Walk-over applications in most material like wood, pavers, or concrete. Unique surface mount design that simplify the installation. Simply fasten the luminaire to the floor with 4 screws, no back box or clearance below grade is required.
Drive-over applications requires the mounting flange/anchor bolts (to be ordered separately).
Suit and Minisuit can also be installed in vertical surfaces.

Exceptional European build quality with high corrosion resistant finish. Robust marine grade die-cast aluminum construction with stainless steel fasteners and factory sealed glass lens.


Brochure ►



FEATURES


Simple surface mount design

2 body sizes

4 floor grazing distributions

4000 KILOS drive over

High efficiency Osram LEDs

High efficiency electronic driver > 50,000 H

Operating temperature -30°C / +30°C

IP67, UL Listed for wet location

Metallic grey finish

5 year limited warranty

SPECIFICATIONS


Power  from 2 to 8 watts

Output  from 38 to 258 lumens

Distributions  Floor grazer with 1, 2 or 4 windows

Color  3000 / 4000 K

Cri 70

Controls Optional

Lumen maintnence L70 50,000 hours

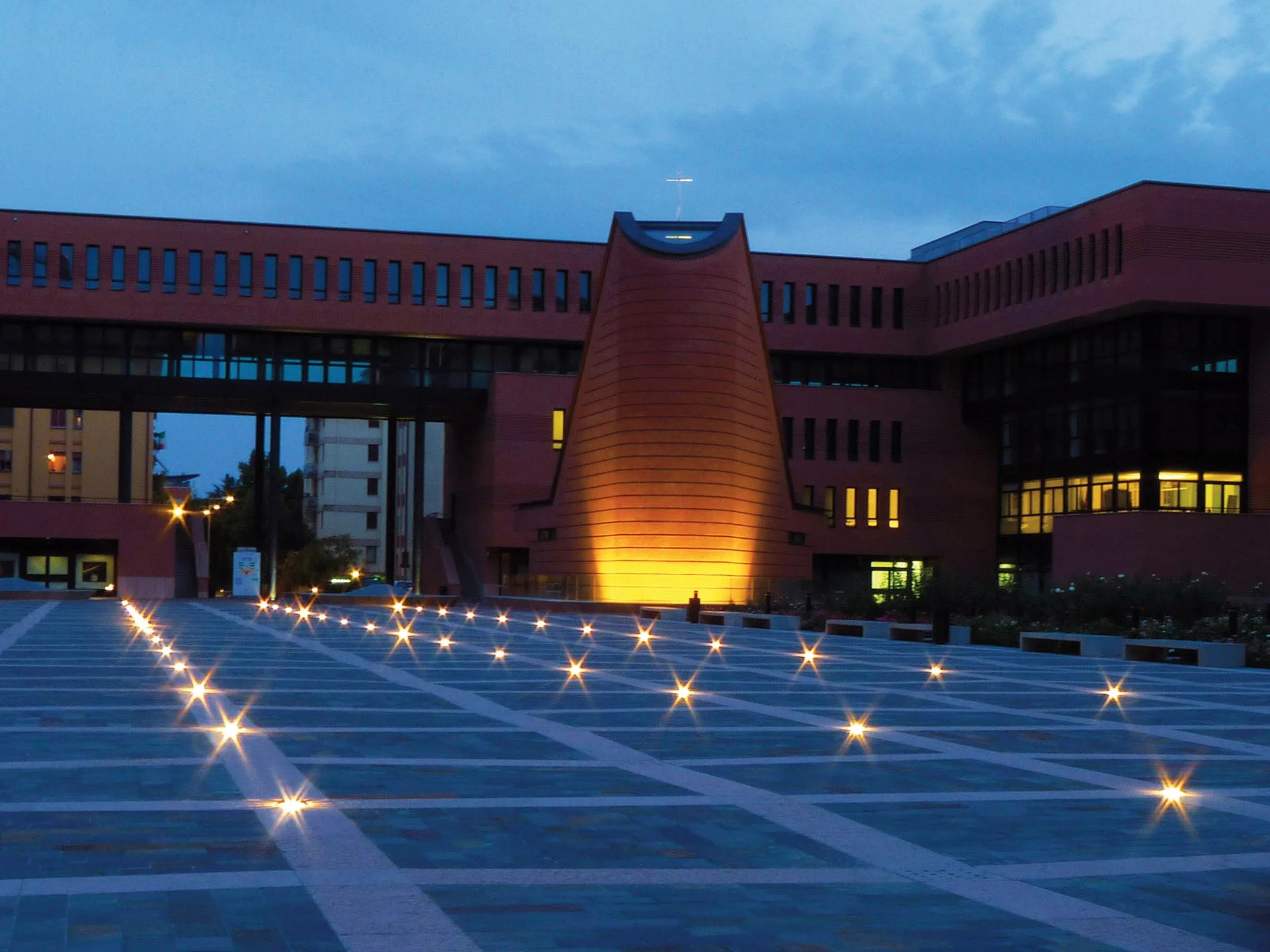

APPLICATION IMAGES


MODELS / DOWNLOADS

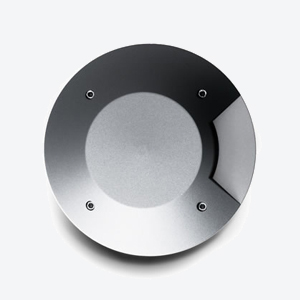

MINISUIT - 1 Window 2.2W Spec ►    Ies/Cad ►

MINISUIT - 1 Window
2.2W
Spec ►    Ies/Cad ►



MINISUIT - 2 Windows 90° 4.3W Spec ►     Ies/Cad ►

MINISUIT - 2 Windows 90°
4.3W
Spec ►     Ies/Cad ►

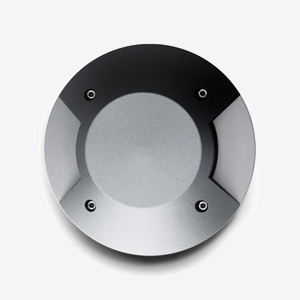

MINISUIT - 2 Windows 180° 4.3W Spec ►    Ies/Cad ►

MINISUIT - 2 Windows 180°
4.3W
Spec ►    Ies/Cad ►

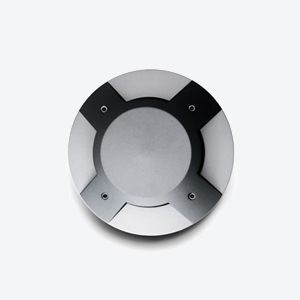

MINISUIT - 4 Windows 5.6W Spec ►     Ies/Cad ►

MINISUIT - 4 Windows
5.6W
Spec ►     Ies/Cad ►

SUIT - 1 Window 3.6W Spec ►    Ies/Cad ►

SUIT - 1 Window
3.6W
Spec ►    Ies/Cad ►



SUIT - 2 Windows 90° 6.2W Spec ►    Ies/Cad ►

SUIT - 2 Windows 90°
6.2W
Spec ►    Ies/Cad ►

SUIT - 2 Windows 180° 6.2W Spec ►     Ies/Cad ►

SUIT - 2 Windows 180°
6.2W
Spec ►     Ies/Cad ►

SUIT - 4 Windows 7.9W Spec ►    Ies/Cad ►

SUIT - 4 Windows
7.9W
Spec ►    Ies/Cad ►



S.5695N S.5695W S.5696W S.5696N S.5697W S.5697N S.5698W S.5698N S.5691N S.5691W S.5692W S.5692N S.5693W S.5693N S.5694N S.5694W
