OVERVIEW

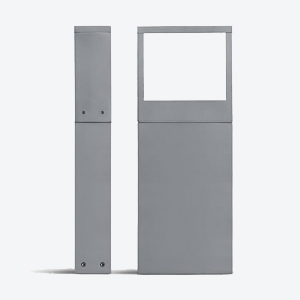

Collection of bollards for commercial and institutional applications.
Exceptional European build quality with high corrosion resistant finish. Robust marine grade die-cast aluminum construction with stainless steel fasteners and factory sealed micro-prismatic glass diffuser.


Brochure ►

FEATURES


3 sizes

Symmetric distributions

Operating temperature -30°C/+30°C

High efficiency Osram LED

IP54, UL Listed for wet location

Aluminum gray

5 year limited warranty

SPECIFICATIONS


Power  7 / 12.5 / 28.5 watts

Output  200 / 480 / 1175 lumens

Distributions  Downward symmetric

Color 3000 / 4000 K

Cri  90

Controls  TRIAC -0-10V

Lumen maintenance : L70  50 000 Hours


MODELS / Downloads



  MICROCOOL SQUARE  Bollard 7W 200 lm  Spec  ►  IES/CAD  ►  Instructions  ►

MICROCOOL SQUARE Bollard
7W 200 lm
SpecIES/CADInstructions

  MINICOOL SQUARE  Bollard 12.5W 480 lm  Spec  ►  IES/CAD  ►  Instructions  ►

MINICOOL SQUARE Bollard
12.5W 480 lm
SpecIES/CADInstructions

  COOL SQUARE  Bollard 28.5W 1175 lm  Spec  ►  IES/CAD  ►  Instructions  ►

COOL SQUARE Bollard
28.5W 1175 lm
SpecIES/CADInstructions



ALSO AVAILABLE AS

S.7236W S.7241W S.7245W S.7246W

S.7287W S.7286W S.7285W
