OVERVIEW


Collection of wall mounted luminaires for exterior applications.

The direct or direct/indirect distribution graze the wall surface enhancing the building color and texture.

Exceptional European build quality with high corrosion resistant finish.
Robust marine grade die-cast aluminum construction, with stainless steel fasteners, factory sealed glass diffuser.

*Some mounting options and/or dimming protocols require remote LED driver



Brochure

FEATURES

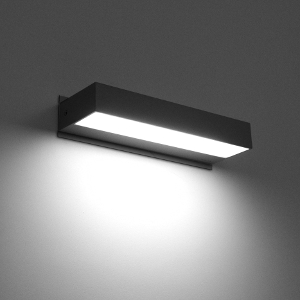

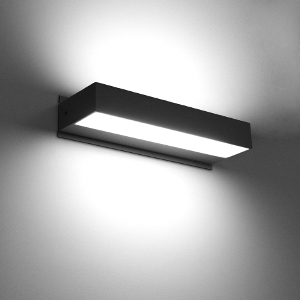

Downlight or up/downlight distribution

High efficiency Osram LEDs

Operating temperature -30°C / +30°C

IP65, UL Listed for wet location

 White, Aluminum gray or Burnished bronze

5 year limited warranty

SPECIFICATIONS


Power  13.5 / 24 watts

Output  from 390 to 890 lumens

Distribution  Downlight or up/downlight

Color  3000 / 4000 K

Cri   90

Controls  See spec sheet

Lumen maintenance  L70  50,000 Hours


Application Images


MODELS / DOWNLOADS



  MINILOOK  Down light 13.5W 475 lm  Spec  ►  IES/CAD  ►  Instructions  ►

MINILOOK Down light
13.5W 475 lm
SpecIES/CADInstructions

  MINILOOK  Up / Down light 13.5W 390 lm  Spec  ►  IES/CAD  ►  Instructions  ►

MINILOOK Up / Down light
13.5W 390 lm
SpecIES/CADInstructions


  LOOK  Down light 24W 890 lm  Spec  ►  IES/CAD  ►  Instructions  ►

LOOK Down light
24W 890 lm
SpecIES/CADInstructions

  LOOK  Up / Down light 24W 725 lm  Spec  ►  IES/CAD  ►  Instructions  ►

LOOK Up / Down light
24W 725 lm
SpecIES/CADInstructions



ALSO AVAILABLE AS

S.7201W S.7250W S.7250N S.7202W S.7252W S.7252N
