OVERVIEW

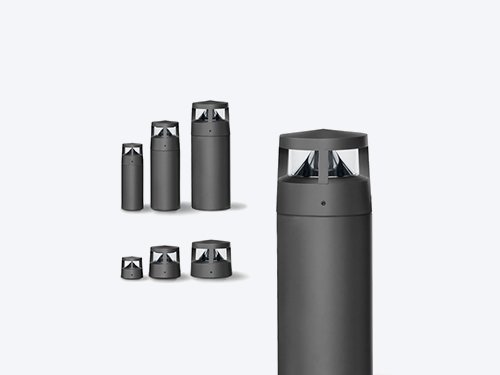

Collection of bollards for commercial and institutional applications.
Exceptional European build quality with high corrosion resistant finish. Robust marine grade die-cast aluminum construction, with stainless steel fasteners and UV resistant polycarbonate diffuser.
FEATURES
3 body sizes
4 lighting distributions
Operating temperature -30°C / +30°C
Integral high efficiency electronic driver > 70,000 H
IP65, UL Listed for wet location
Aluminum gray or Anthracite Gray
5 year limited warranty
SPECIFICATIONS
Power From 9.8 to 36 watts
Output See spec sheet
Distributions Downward asymmetric
Color 2700, 3000, 4000 K
Cri 80, 90
Controls Contact the factory
Lumen maintenance L80 70,000 hours
APPLICATION IMAGES
MODELS / Downloads
SHORT BOLLARD
MICROREEF 5''
Model: S5311, S5320 or S5330
► S5XXX_REEF_Borne-Courte.pdf
► INS-221_Junction-box.pdf
► S5311_S5320_S5330_Microreef-5_IES
► S5311_S5320_S5330_Microreef-5_2D-3D
► S5311_S5320_S5330_Microreef-5_Revit
MINIREEF 7 1/8''
Model: S5210, S5223 or S5233
► S5XXX_REEF_Borne-Courte.pdf
► INS-587_4in-junction-box.pdf
► S5210_S5223_S5233_Minireef-7_IES
► S5210_S5223_S5233_Minireef-7_2D-3D
► SS5210_S5223_S5233_Minireef-7_Revit
REEF 8 5/8''
Model: S5217, S5227 or S5237
► S5XXX_REEF_Borne-Courte.pdf
► INS-587_4in-junction-box.pdf
► S5217_S5227_S5237_Reef-8_IES
► S5217_S5227_S5237_Reef-8_2D-3D
► S5217_S5227_S5237_Reef-8_Revit
BOLLARD
MICROREEF 15 1/8''
Model: S5317, S5327 or S5337
► S5XXX_REEF_Borne-Courte.pdf
► INS-5162_Concrete-with-flange.pdf
► S5317_S5327_S5337_Microreef-15_IES
► S5317_S5327_S5337_Microreef-15_2D-3D
► S5317_S5327_S5337_Microreef-15_Revit

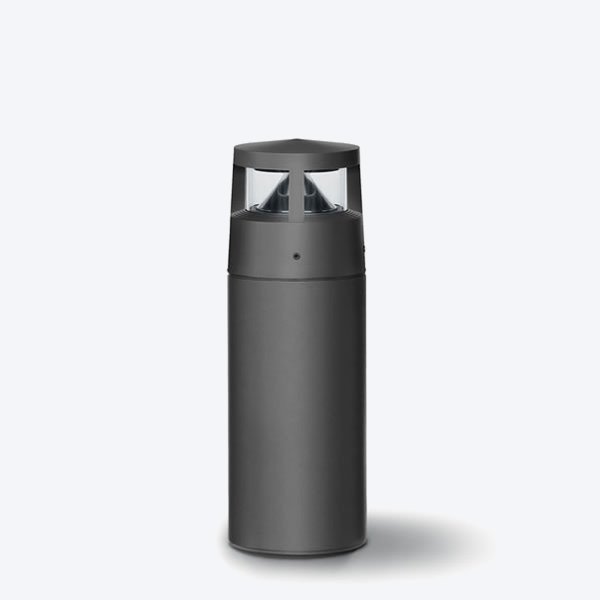

MINIREEF 21 3/4''
Model: S5240, S5253 or S5263
► S5XXX_REEF_Borne-Courte.pdf
► INS-5162_Concrete-with-flange.pdf
► S5240_S5253_S5263_Minireef-21_IES
► S5240_S5253_S5263_Minireef-21_2D-3D
► S5240_S5253_S5263_Minireef-21_Revit►
REEF 26 5/8''
Model: S5247, S5257 or S5267
► S5XXX_REEF_Borne-Courte.pdf
► INS-5162_Concrete-with-flange.pdf
► S5247_S5257_S5267_Reef-26_IES
► S5247_S5257_S5267_Reef-26_2D-3D
► S5247_S5257_S5267_Reef-26_Revit
S.5327W S.5337W S.5317W S.5377W S.5253W S.5263W S.5240W S.5243W S.5257W S.5267W S.5247W S.5297W S.5311 S.5320W S.5330W S.5370W S.5210W S.5223W S.5233W S.5213W S.5217W S.5227W S.5237W S.5277W
