OVERVIEW


Elegant LED profile systems with small aperture of only 1.5", available in two sizes for direct or direct/indirect illuminations.
Frosted white PMMA diffuser provides uniform distribution without LEDs imaging, light lines or shadows. Wide distribution suitable for general lighting.

Proprietary LED platform with superior thermal management that yields reliable color consistency and output performance. The dedicated heat sink maintains the LED temperature at minimal levels to ensure reliability in all conditions.
Continuous luminaires run of up to 24 ft are supplied with a single diffuser.

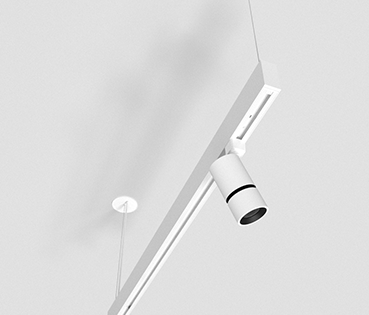

Modular continuous systems can be configured to obtain bespoke solutions by incorporating tracks systems or Laser Blades modules from iGuzzini.

Supplied with 5 ft cord, install into a standard Jbox.

Also available in T5

FEATURES


Direct or direct/indirect distribution.

Osram LEDs ( LM80 )

UL listed

5 year limited warranty

White or grey painted finish

MADE IN CANADA

SPECIFICATIONS


Power  4.8  / 7 / 10 watts per foot

Output  510  / 710  / 940 lumens per foot

Distributions  Greneral lighting

Color  3000 / 3500 / 4000 K

Cri  85

Controls  0-10V -Lutron Hilume

Lumen maintenance L70 100,00 hours


Applications images




MODELS / DOWNLOADS



LINEAR Up/Downlight Spec ►   IES/CAD ►   Instructions ►

LINEAR Up/Downlight
Spec ►   IES/CAD ►   Instructions ►

LINEAR Compact Downlight Spec ►   Instructions ►

LINEAR Compact Downlight
Spec ►   Instructions ►






3600 3610 3620
