OVERVIEW


Collection of recessed downlights for architectural applications.
Excellent build quality with features for the most demanding professional applications.

Four sizes 3", 4", 5", 6" aperture with generous light outputs and excellent chromatic performance.

Accessory: Hex Cell Louver




FEATURES


Remodel, new construction, insulated ceiling or Chicago plenum applications

3", 4", 5", 6" aperture

Field interchangeable optics

Adjustable 20º / 40º / Wall washer

High efficiency Citizen LED

UL listed

5 year limited warranty

ASSEMBLED IN CANADA

SPECIFICATIONS


Power   From 11 to 43 watts

Output  Up to 3000 lumens

Distribution  20º / 40º / Wall washer

Color    2700 / 3000 / 3500 / 4000 K

Cri   80 / 90 / 97

Controls   TRIAC / 0-10V / Lutron

Lumen maintenance   L90 50,000 hours and L80 100,000 hours


BROCHURE

DOWNLOADS


Scalable design

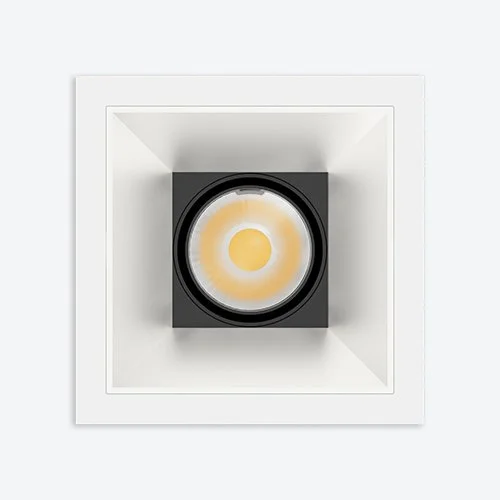

Round or Square design

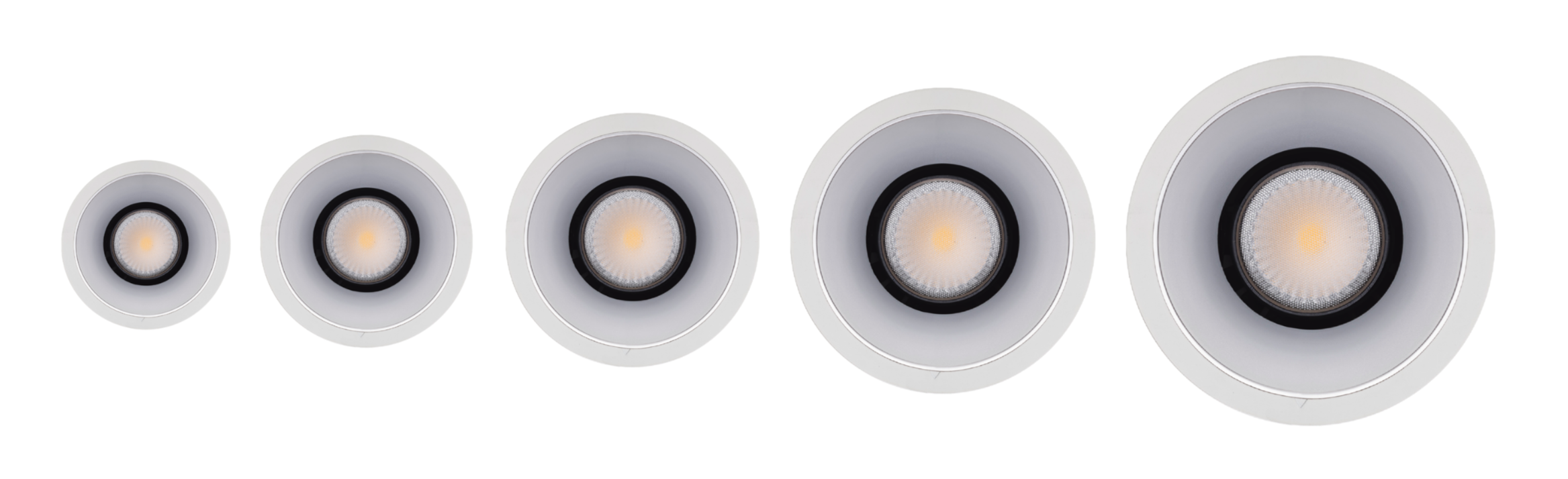

Four sizes with 3", 4", 5" or 6" aperture

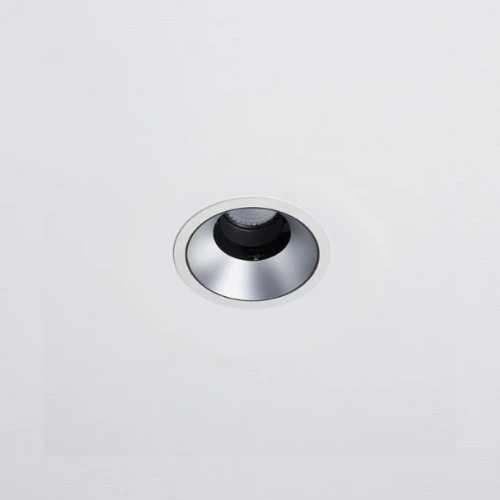

trim or trimless



The entire series is available with a small trim or trimless design.
The trimless version is supplied with the mud-kit necessary for the installation. The trimless version provides the ultimate architectural finish, supplied with a mud-kit necessary for installation.

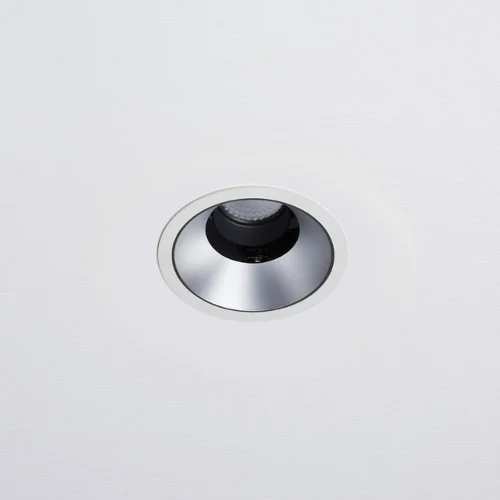

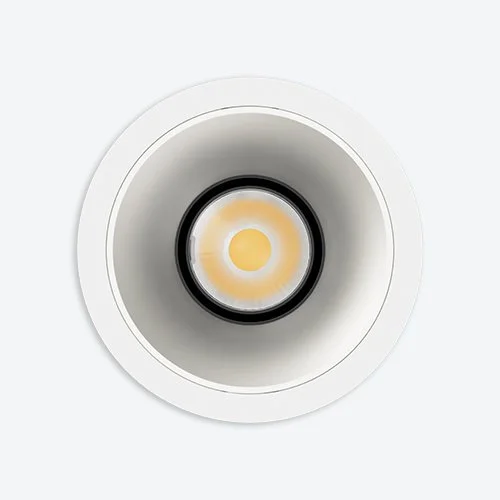

FIXED downlight

The fixed downlight optic is designed for general lighting. Broad light distribution with mat anodized reflector and the light source regress inside the luminaire.


ADJUSTABLE

The adjustable optic allows 30° tilt and 355° rotation of the entire optical assembly. The hot aiming mechanism features granular adjustment, locks on all axis and includes soft focus lens.
Available in 20° and 40° distribution (field interchangeable reflectors).




fixed WALL WASHER

The wall washer optic provides a uniform asymmetric distribution to enhance vertical surfaces.


APPLICATION IMAGES


MODELS / Downloads

LOGO Mini 3" Round and Square Coming Soon

LOGO Mini 3"
Round and Square
Coming Soon

LOGO Small 4" Round and Square 11W to 20.5W - 1340 lm Spec ►     Ies/Cad ►

LOGO Small 4"
Round and Square
11W to 20.5W - 1340 lm
Spec ►     Ies/Cad ►

LOGO Medium 5"  Round and Square 15.5W to 29W - 1810 lm Spec ►     Ies/Cad ►

LOGO Medium 5"
Round and Square
15.5W to 29W - 1810 lm
Spec ►     Ies/Cad ►

LOGO Large 6" Round and Square 22W to 43W - 2800 lm Spec ►     Ies/Cad ►

LOGO Large 6"
Round and Square
22W to 43W - 2800 lm
Spec ►     Ies/Cad ►
