OVERVIEW


LED track projector for commercial applications. Simple and functional design is the ideal choice for retail applications where a cost effective lighting solutions is desired. Producing up to 3700 lumens Echo is among the best performing luminaires in the industry.

Industry leading LED platform yields reliable color consistency and output performance during the life of the product.

Supplied with Triac, ELV or 0-10V dimmable driver

FEATURES


Tracks or base mounted

High efficiency system 113 lm / W

Field interchangeable optics

Toolless lock

UL listed

5 year limited warranty

White, Black or Metallic gray

DLC

MADE IN CANADA

SPECIFICATIONS


Power  20.5 or 34.5 watts

Output  1355 to 3720 lumens

Distributions  20º / 25º / 40º

Color  2700 / 3000 / 3500 / 4000 K

Cri  80 / 90 / Full spectrum

Controls  TRIAC-ELV, 0-10V

Lumen maintenance  L90 132,000 hours



DOWNLOADS


Model: 1620
Spec ►
IES/CAD ►
Instructions ►
Brochure ►

FULL SPECTRUM
Spec ►
IES/CAD ►
Instructions ►


ACCESSORIES

A complete range of accessories is available for applications where shielding the light aperture is desired. Colorless optical glass lenses allow to further customize the light distribution.


TRACKS

Professional tracks systems suitable for architectural or retail applications.
Recessed, surface mounted or suspended these system are suitable for commercial or institutional applications.


Tracks with dedicated data conductors for other dimming protocols are available on demand, please consult your sales representative.

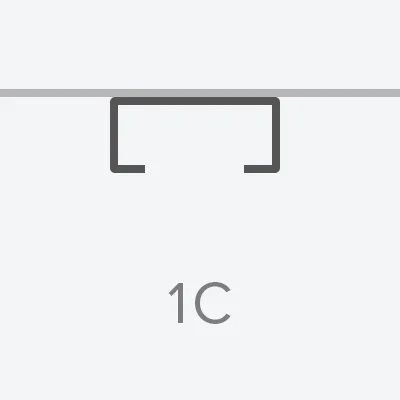

1 Circuit Track 120V Spec ►Instructions ►

1 Circuit Track
120V
Spec Instructions

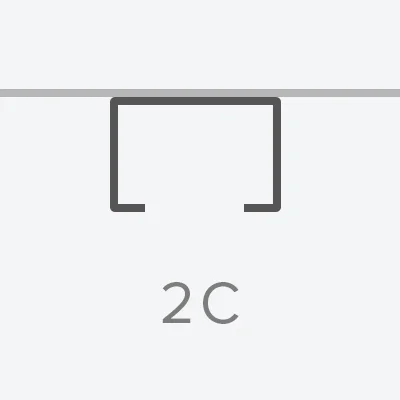

2 Circuit Track 120V or 277V Spec ► Instructions ►

2 Circuit Track
120V or 277V
SpecInstructions

Recessed 1 Circuit Track  120V Spec ► Instructions ►

Recessed 1 Circuit Track
120V
SpecInstructions

Recessed 2 Circuit Track 120V or 277V Spec ► Instructions ►

Recessed 2 Circuit Track
120V or 277V
SpecInstructions
