OVERVIEW


Elegant LED profile systems with small aperture, only 1.5". Modular
continuous systems configured to obtain bespoke solutions by
incorporating Laser Blade modules from iGuzzini.

FEATURES


LM80 Osram LEDs

UL listed

Up to 60lm/W

5 year limited warranty

White, Black or Gray

SPECIFICATIONS


Power  13 to 37W per module

Output  350 to 2200lm per module

Distribution  Spot / Flood / Wide Flood / Wall Washer.

Color  2700 / 3000 / 3500 / 4000 K

Cri  85 / 90 / 95

Controls  0-10V / Lutron Hi-lume / Leading and trailing edge

Lumen maintenance L80 50,000 hours


SYSTEM Options


This versatile system can be specified as independent modules (SOLO UNIT) or as continuous systems (INLINE SYSTEM). These modules are available in 4 or 8 ft length with downlight or wall washer optics.

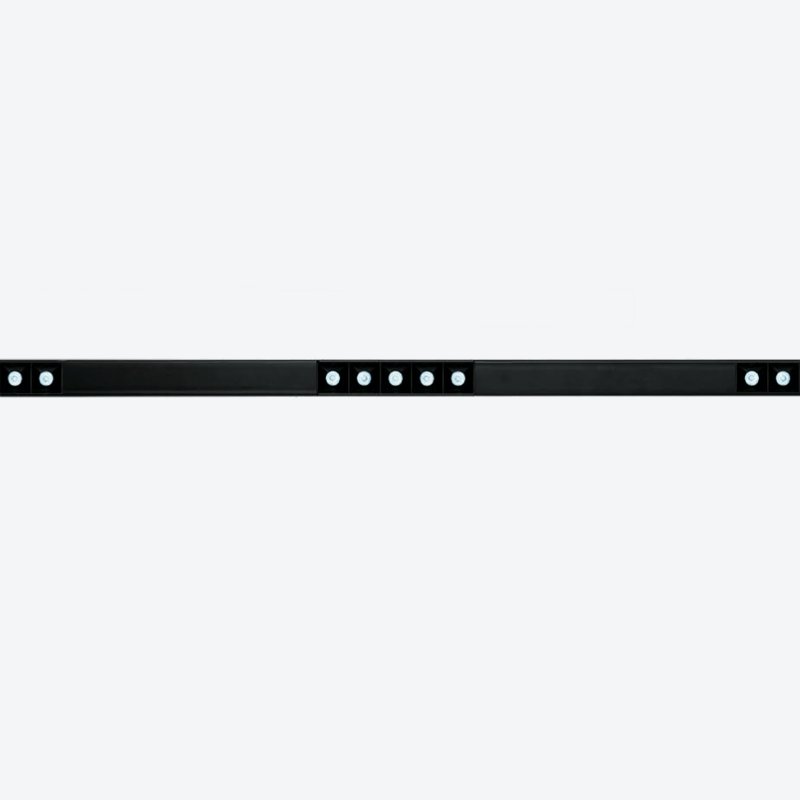

The INLINE SYSTEM can be combined to the desired length maintaining consistent spacing between light modules.



DOWNLIGHT DISTRIBUTION

The system is designed around the award winning original iGuzzini optics.
The optic system delivers a sharp cutoff with perfectly defined beams.




WALL WASHER


The wall washer optic provides uniform distribution on vertical surfaces.



MODELS / DOWNLOADS



SOLO UNIT

  LINEAR LASER BLADE   Recessed - Solo Unit  Spec  ►  IES/CAD  ►  Instructions  ►

LINEAR LASER BLADE
Recessed - Solo Unit
Spec IES/CADInstructions




INLINE SYSTEM

  LINEAR LASER BLADE  Recessed - Inline System  Spec  ►  IES/CAD  ►  Instructions  ►

LINEAR LASER BLADE
Recessed - Inline System
Spec IES/CADInstructions





Also available as
