OVERVIEW

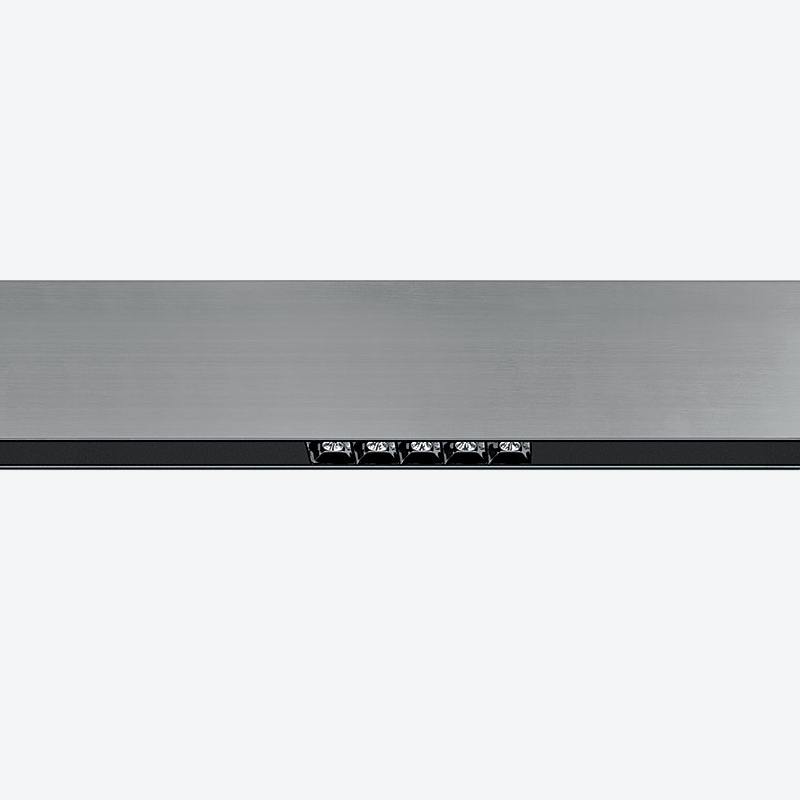

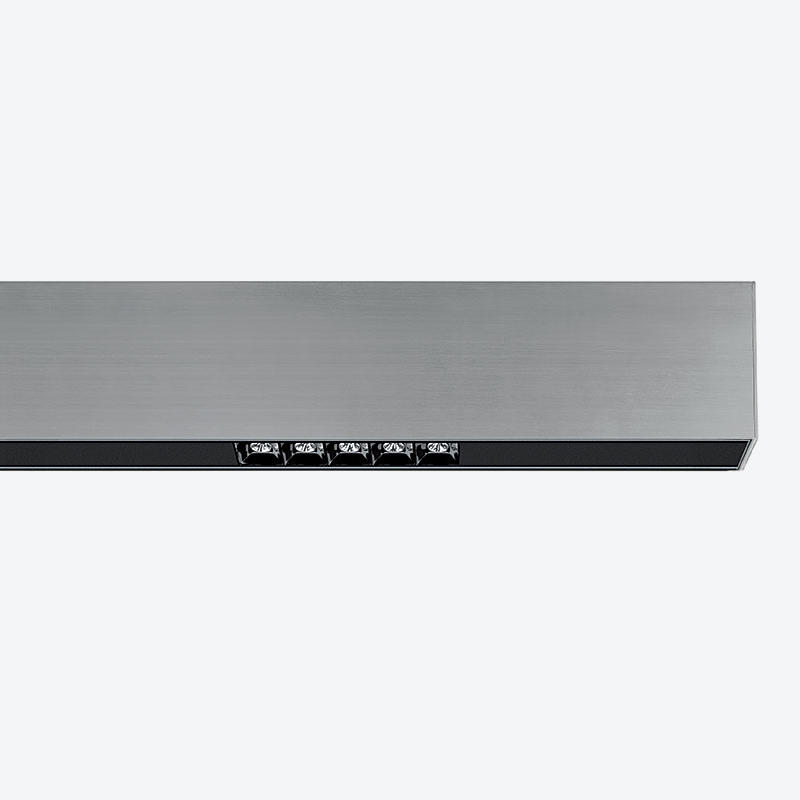

Elegant LED profile systems with small aperture, only 1.5". Available
in two different sizes. Modular continuous systems configured to
obtain bespoke solutions by incorporating Laser Blade modules from iGuzzini.

FEATURES


LM80 Osram LEDs

UL listed

Up to 60lm/W

5 year limited warranty

White, Black or Gray

SPECIFICATIONS


Power  13 to 37W per module

Output  350 to 2200lm per module

Distribution  Spot / Flood / Wide Flood / Wall Washer

Color  2700 / 3000 / 3500 / 4000 K

Cri  90 / 95

Controls  0-10V / Lutron Hi-lume / Leading and trailing edge

Lumen maintenance L80 50,000 hours


SYSTEM OPTIONS


This versatile system can be specified as independent modules (SOLO UNIT) or as continuous systems (INLINE SYSTEM). These modules are available in 4 or 8 ft length with downlight or wall washer optics.

The INLINE SYSTEM can be combined to the desired length maintaining consistent spacing between light modules.

The SINGLE MODULES are supplied with only one Laser Blade unit and can be ordered with remote drivers.



DOWNLIGHT DISTRIBUTION

The system is designed around the award winning original iGuzzini optics.
The optic system delivers a sharp cutoff with perfectly defined beams.




WALL WASHER


The wall washer optic provides uniform distribution on vertical surfaces.



MODELS / DOWNLOADS



SOLO UNIT

  LINEAR LASER BLADE   Surface -   Solo Unit  Spec  ►  IES/CAD  ►  Instructions  ►

LINEAR LASER BLADE
Surface - Solo Unit
Spec IES/CADInstructions




INLINE SYSTEM

  LINEAR LASER BLADE   Surface - Inline System  Spec  ►  IES/CAD  ►  Instructions  ►

LINEAR LASER BLADE
Surface - Inline System
Spec IES/CADInstructions




SINGLE MODULE

  LINEAR LASER BLADE   Surface - Single Module Integral  Spec  ►  IES/CAD  ►  Instructions  ►

LINEAR LASER BLADE
Surface - Single Module Integral
Spec IES/CADInstructions

  LINEAR LASER BLADE   Surface - Single Module Remote  Spec  ►  IES/CAD  ►  Instructions  ►

LINEAR LASER BLADE
Surface - Single Module Remote
Spec IES/CADInstructions





Also available as

3654 3664
